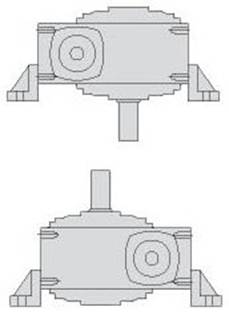

L型腳座 L TYPE BASE KITS
L-KITS50#~135#

尺寸表 Dimension (m/m)
| MODEL |
C |
E |
F |
G |
H |
J |
K |
L |
N |
P |
Q |
Z |
Weight |
| 50 |
90 |
40 |
90 |
14 |
40 |
25 |
25 |
9 |
115 |
9 |
14 |
11 |
1 |
| 60 |
100 |
45 |
100 |
15 |
45 |
30 |
27.5 |
12 |
126 |
11 |
17 |
11 |
2 |
| 70 |
125 |
50 |
120 |
18 |
50 |
35 |
32.5 |
14 |
155 |
11 |
17 |
15 |
2.5 |
| 80 |
145 |
60 |
140 |
20 |
52 |
40 |
32.5 |
18 |
174 |
11 |
17 |
15 |
4 |
| 100 |
185 |
60 |
190 |
20 |
70 |
40 |
47.5 |
18 |
224 |
13 |
19 |
15 |
4 |
| 120 |
220 |
62.5 |
220 |
24 |
80 |
40 |
50 |
18 |
264 |
15 |
22 |
18 |
6 |
| 135 |
260 |
67.5 |
260 |
28 |
77 |
45 |
55 |
24 |
304 |
17 |
26 |
18 |
5.1 |
|
|
|
|
|
|
|
|
|
|
|
